Nornir and Nemiko Plugin (II)

Welcome back to Part 2 of our Nornir course. In this part, we will explore the Netmiko plugin. The Netmiko plugin is used within the Nornir framework to simplify interactions with network devices. Netmiko is a Python library that facilitates SSH connections to network devices. This plugin leverages Netmiko's functionalities to execute commands over SSH, making it easier to manage and configure devices without creating our own functions or plugins.

Please note that this course is in progress and I will be posting new updates in the upcoming weeks.

You can install the plugin with a simple pip command as shown below.

pip3 install nornir_netmiko

Nornir Automation Introduction

Nornir is a Python library designed for Network Automation tasks. It enables Network Engineers to use Python to manage and automate their network devices.

PacketswitchSuresh Vina

Nornir Netmiko Simple Exmaple

So far, we've seen that Nornir is a framework that provides inventory management, and Netmiko offers a way to SSH and interact with network devices. Now, if we combine them, what do we get? Well, we have a neat way to SSH into multiple devices at once and perform tasks efficiently and concurrently.

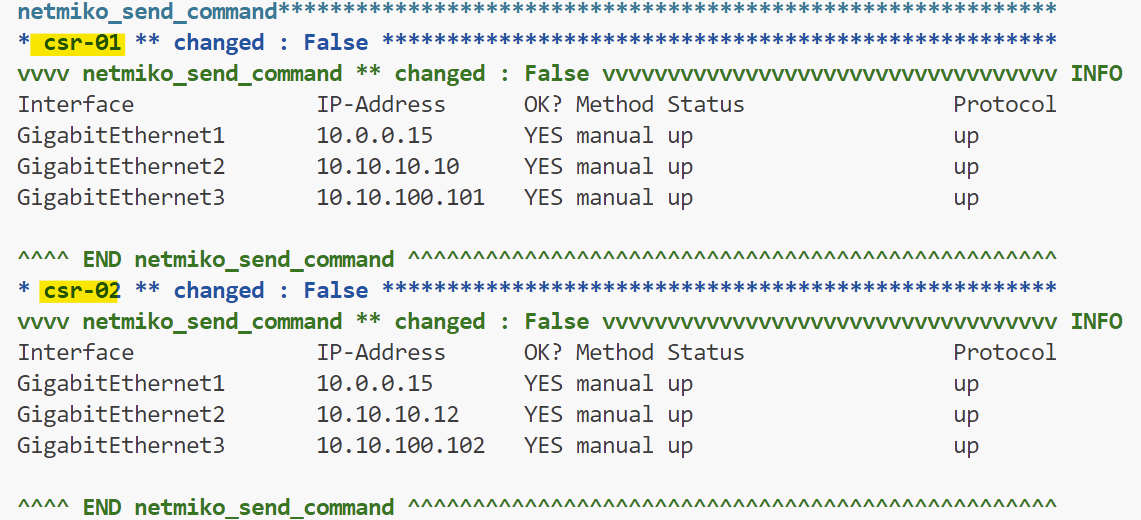

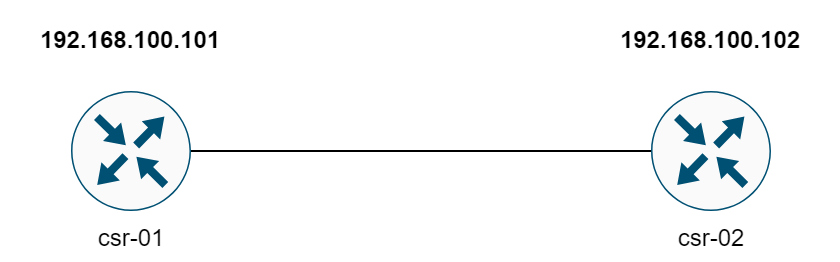

Let's look at a simple example where we have two Cisco devices and we want to run a show command and print the output.

from nornir import InitNornir
from nornir_netmiko.tasks import netmiko_send_command
from nornir_utils.plugins.functions import print_result


nr = InitNornir(config_file='config.yaml')

results = nr.run(task=netmiko_send_command, command_string='show ip interface brief | excl down')
print_result(results)

Here’s a breakdown of the code and how each component functions.

1. Import Statements
   • from nornir import InitNornir - Imports the InitNornir function, which initializes a Nornir instance using a configuration file.
   • from nornir_netmiko.tasks import netmiko_send_command - Imports the netmiko_send_command task from the nornir_netmiko plugin.
   • from nornir_utils.plugins.functions import print_result - Imports the print_result function, which is used to print the results of tasks executed by Nornir.
2. Initializing Nornir
   • nr = InitNornir(config_file='config.yaml') - Initializes a Nornir object (nr) using settings from a configuration file named config.yaml.
3. Running a Task with Netmiko
   • results = nr.run(task=netmiko_send_command, command_string='show ip interface brief | excl down') - This line runs a task across all devices in the inventory. The netmiko_send_command task (which is part of the nornir_netmiko plugin) is used to send a specific command to each device. In this case, the command is show ip interface brief | excl down
4. Printing Results
   • print_result(results) - This function call prints the results of the executed task. The print_result plugin formats the output to be more readable and structured, showing which devices returned what results in an organized manner.

BGP Training Course for Beginners

Hi everyone, welcome to our course on BGP, also known as the Border Gateway Protocol. My goal is to make BGP easy to understand by using simple examples that everyone can understand and follow.

PacketswitchSuresh Vina

Sending multiple show commands

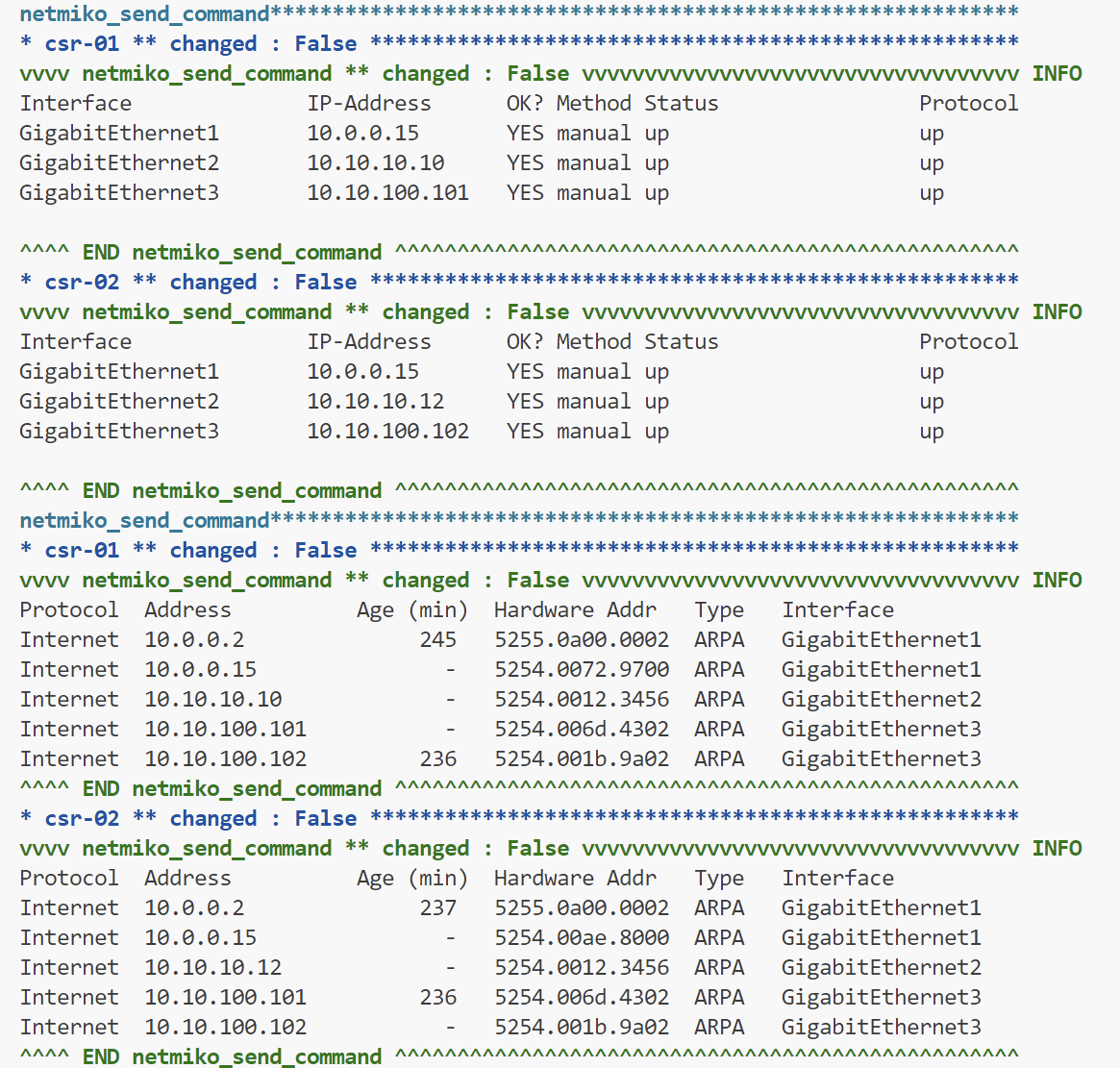

If we want to send multiple commands? All we have to do is, simply add another line that specifies the new command and execute the run method again. Below is the updated code snippet where I added a command to show the ARP table of the devices.

from nornir import InitNornir
from nornir_netmiko.tasks import netmiko_send_command
from nornir_utils.plugins.functions import print_result


nr = InitNornir(config_file='config.yaml')

results_ip_brief = nr.run(task=netmiko_send_command, command_string='show ip interface brief | excl down')
results_ip_arp = nr.run(task=netmiko_send_command, command_string='show ip arp')


print_result(results_ip_brief)
print_result(results_ip_arp)

A Slightly Modified Script (Sub-Tasks)

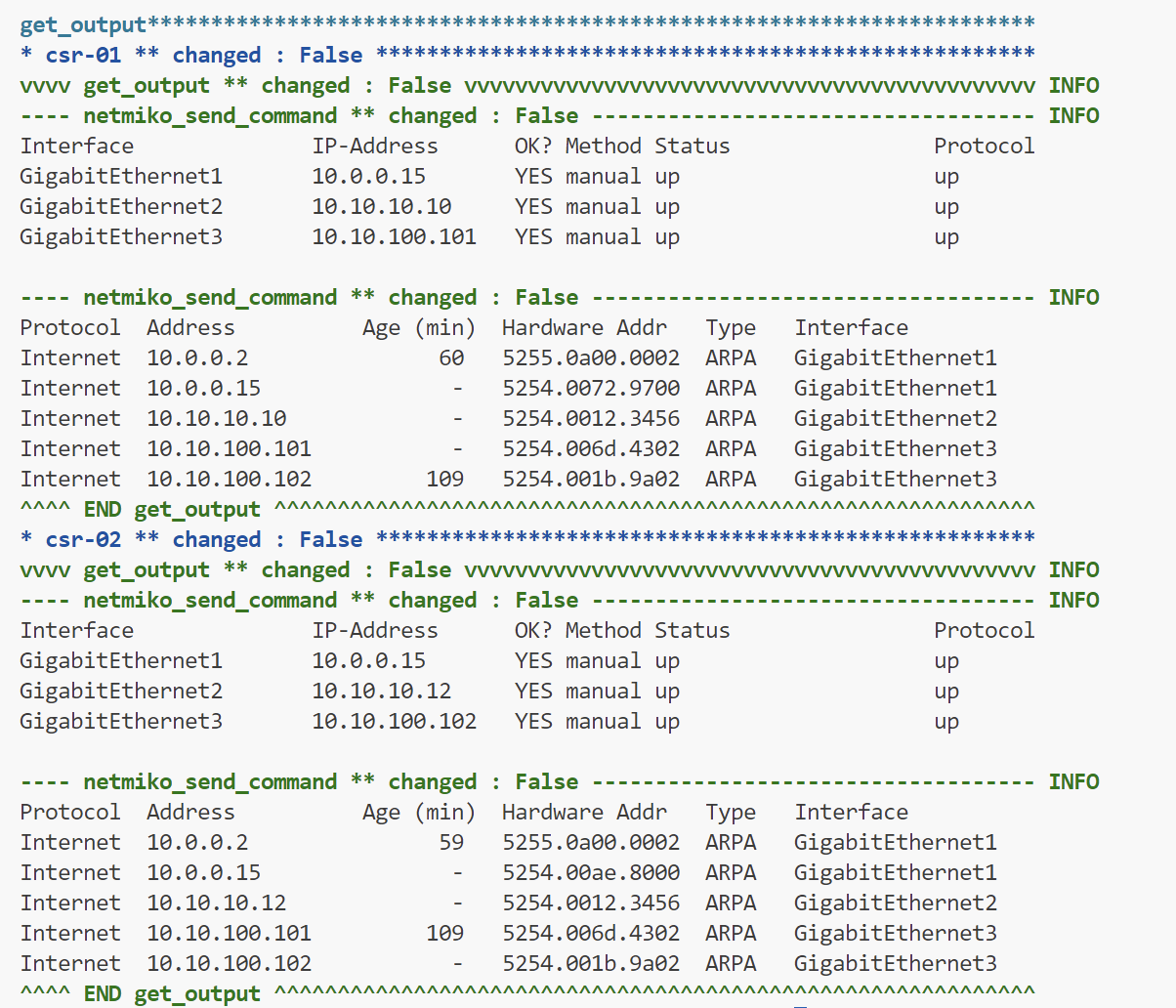

This is my preferred way of running multiple tasks under a parent task. For me at least, this looks much better than having separate tasks and printing the results separately.

from nornir import InitNornir
from nornir_netmiko.tasks import netmiko_send_command
from nornir_utils.plugins.functions import print_result

def get_output(task):
    task.run(task=netmiko_send_command, command_string='show ip interface brief | excl down')
    task.run(task=netmiko_send_command, command_string='show ip arp')

nr = InitNornir(config_file='config.yaml')
results = nr.run(task=get_output)

print_result(results)

In this example, you would have seen two different ways to run tasks, task.run and nr.run. Here’s a brief explanation of the difference between the two.

• task.run - This is used within a task function to execute another task. Think of it as calling a sub-task within your main task. When you use task.run, you're essentially saying, "While performing this task, go ahead and run these additional tasks as part of it."
• nr.run - On the other hand, nr.run is used to kick off tasks at the top level. This is the method you call when you want to start your automation process and execute tasks across your inventory of devices.

In summary, nr.run is used to initiate your automation tasks on your network devices, while task.run allows you to organize and modularize your tasks by calling other tasks within a task.

I hope you can already spot the differences and benefits of using Nornir here. I'm not using any for loops, and I haven't used any lists or dictionaries to manage the devices; everything is handled by Nornir.

BGP Path Attributes Overview and Examples

Path attributes provide BGP routers with the information needed to choose the best path. They are the criteria based on which BGP makes its routing decisions.

PacketswitchSuresh Vina

write_file plugin

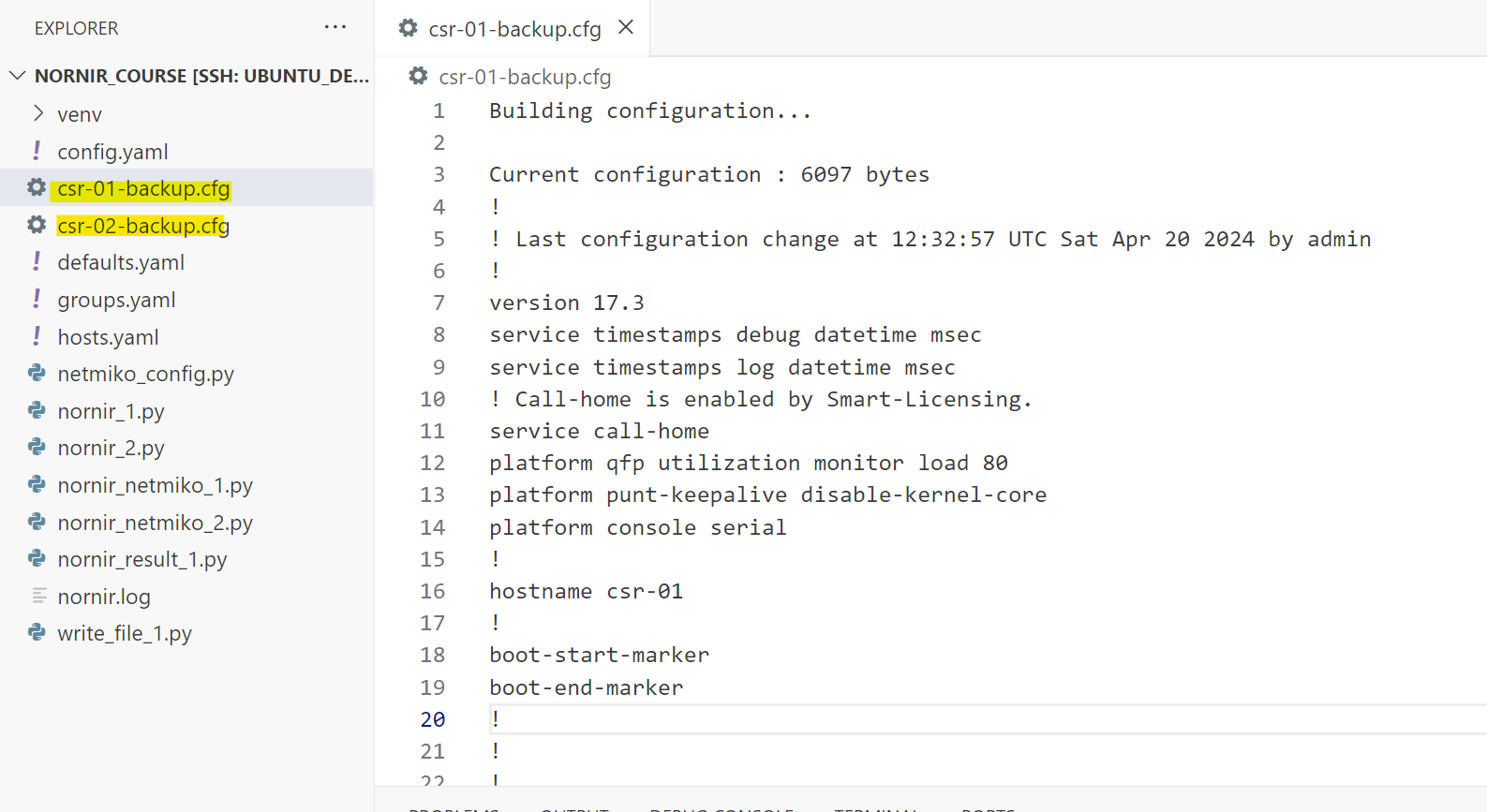

Now, suppose we want to back up the configs by running show run on all the devices and save it to a file. Let's look at how to use the write_file plugin to do just that. Please note that the write_file plugin is part of nornir_utils collection and you can install it by running a simple pip command.

pip3 install nornir_utils

In the following script, we use Nornir to automate network configuration backups using a function named backup_config. Here are the key components explained.

from nornir import InitNornir
from nornir_netmiko.tasks import netmiko_send_command
from nornir_utils.plugins.tasks.files import write_file

def backup_config(task):
    output = task.run(task=netmiko_send_command, command_string='show run')
    task.run(task=write_file, filename=f'{task.host}-backup.cfg', content=output[0].result)

nr = InitNornir(config_file='config.yaml')
results = nr.run(task=backup_config)

• task.host - This is used within the script to dynamically retrieve the name of the current device (host) that Nornir is working with. It allows us to customize actions like file naming based on each host's unique name. For instance, in the script, task.host is used to name the backup file uniquely for each device, ensuring that the configurations are saved in separate files named after each host.
• result - In this context, result refers to the outcome of the tasks that are run. Each task execution, such as netmiko_send_command, returns a result object. This object contains data about the execution, including the output of the command run on the network device. We will explore Nornir results in more detail later but remember that result[0].result contains the actual output from the device. (We will cover the result object in detail in the upcoming sections)

The script is structured to initiate Nornir, run the backup_config task across configured hosts, get the output and save it to the file.

Netmiko Configuration Commands

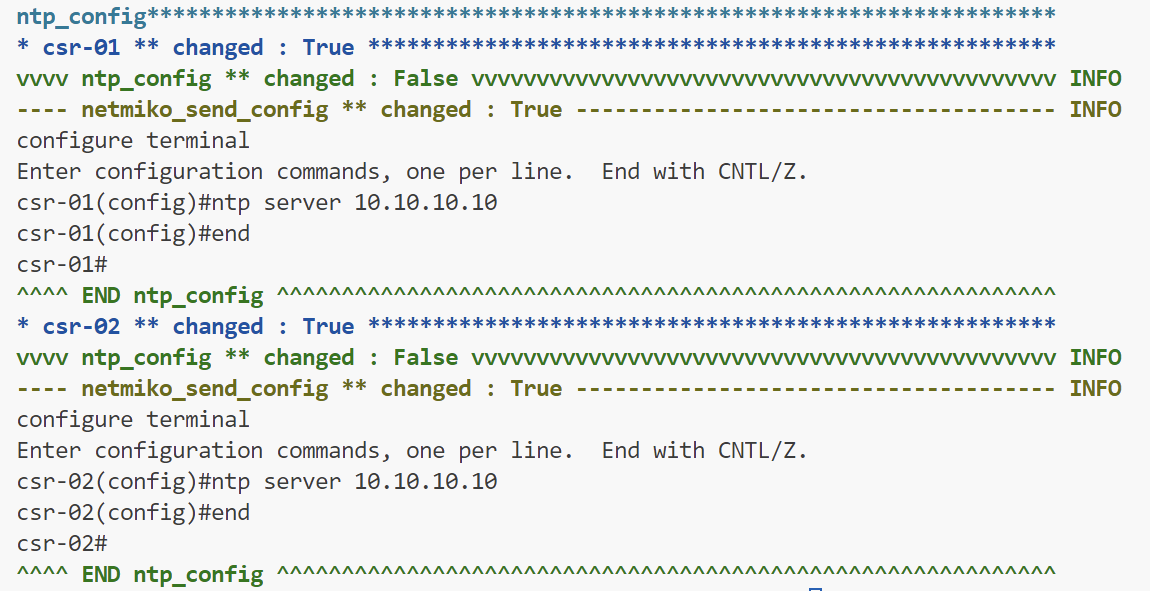

In this final example, we look at how to send configuration commands to network devices using the Netmiko library through Nornir. The function we focus on here is netmiko_send_config, which is designed for sending configuration commands rather than just executing show commands.

from nornir import InitNornir
from nornir_netmiko.tasks import netmiko_send_config
from nornir_utils.plugins.functions import print_result

def ntp_config(task):
    task.run(task=netmiko_send_config, config_commands=['ntp server 10.10.10.10'])

nr = InitNornir(config_file='config.yaml')
results = nr.run(task=ntp_config)

print_result(results)

netmiko_send_config - This function from the nornir_netmiko plugin allows you to send configuration commands to network devices. It differs from netmiko_send_command, which is used for sending show commands.

Docker Series #1: Hello Docker

As always, my goal here is to explain what Docker is using plain language and relatable examples, I hope to give you a clear understanding of what Docker is.

PacketswitchSuresh Vina

Closing up

In the next part, we will dive deep into the Nornir Inventory and execute tasks in subsequent devices (Inventory Filtering)
