Cisco ASA Site-to-Site VPN

Cisco ASA Site-to-Site VPN
In: Cisco, Firewall

If you are reading this blog then it is more likely you are looking to get some assistance with configuring a VPN on the ASA. What if I tell you that configuring site-to-site VPN on the Cisco ASA only requires around 15 lines of configuration. Better yet, you may only need less than 10 lines if you already have another tunnel configured.

This blog post assumes prior knowledge of Cisco ASA CLI syntax and site-to-site VPN fundamentals.

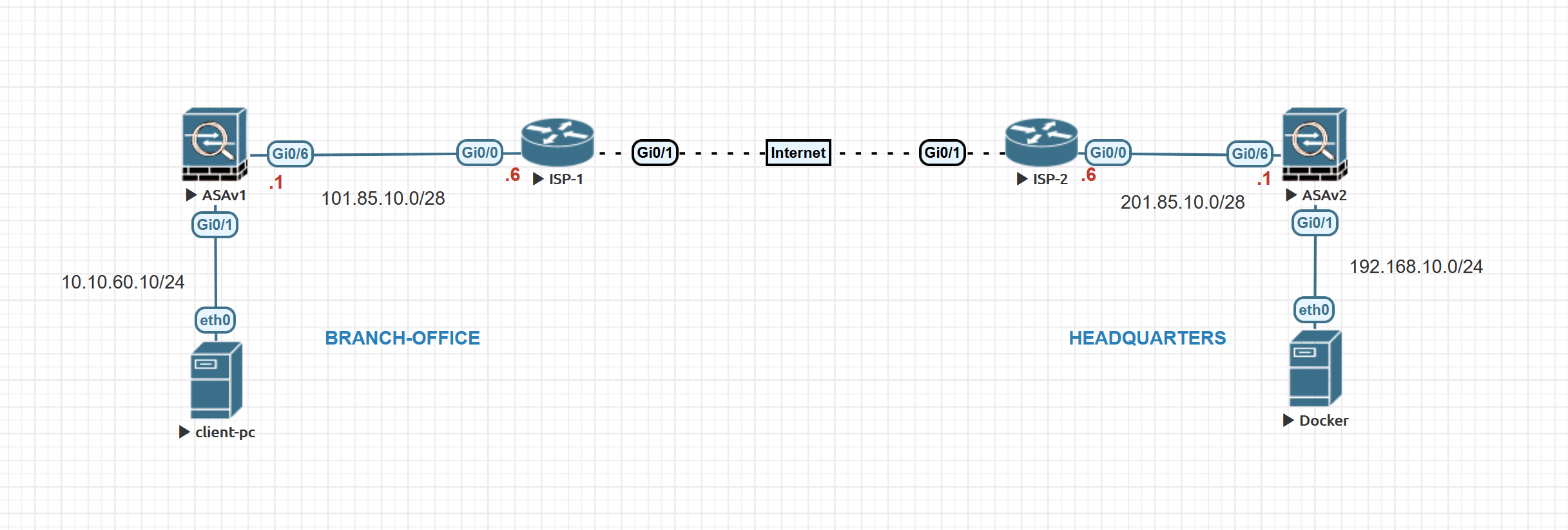

Diagram

Our ultimate goal here is to set up a site-to-site VPN between the Branch Office and the Headquarters. Let's assume the client-pc (10.10.60.10) in the branch office needs to access a web server (192.168.10.10) in the headquarters.

Cisco ASA non-VPN Configurations

Branch Office

Branch Office ASA
-----------------
interface GigabitEthernet0/1
 nameif USERS
 security-level 100
 ip address 10.10.60.1 255.255.255.0

interface GigabitEthernet0/6
 nameif OUTSIDE
 security-level 0
 ip address 101.85.10.1 255.255.255.248

route OUTSIDE 0.0.0.0 0.0.0.0 101.85.10.6 1

object network ho-server-subnet
 subnet 192.168.10.0 255.255.255.0

object network user-subnet
 subnet 10.10.60.0 255.255.255.0
 nat (USERS,OUTSIDE) dynamic interface


The interface configuration is self-explanatory, ASA has two interfaces, one for the user and another one for the Internet. The default route is pointing to the ISP router with a static route. There are two objects, one for the branch user subnet and another one for the HQ webserver subnet.

The NAT part is quite important because we will talk about that later. As you can see above, I have a dynamic PAT configuration for the user subnet. So, when the user traffic leaves the ASA, the source IP is translated to the IP address of the ASA's outside interface (101.85.10.1)

Headquarters

interface GigabitEthernet0/1
 nameif SERVERS
 security-level 50
 ip address 192.168.10.1 255.255.255.0

interface GigabitEthernet0/6
 nameif OUTSIDE
 security-level 0
 ip address 201.85.10.1 255.255.255.248

route OUTSIDE 0.0.0.0 0.0.0.0 201.85.10.6 1

object network branch-user-subnet
 subnet 10.10.60.0 255.255.255.0

object network ho-server-subnet
 subnet 192.168.10.0 255.255.255.0
 nat (SERVERS,OUTSIDE) dynamic interface



Same as above except for the object names and the IPs.

ASA VPN configurations IKEv1

Please note that if you already have another VPN tunnel then most likely most of the configurations are already done for you. So, please make sure not to change or override them.

Branch Office

  1. Enable IKEv1 on the outside interface (if not enabled already)
crypto ikev1 enable OUTSIDE

2. Create an IKEv1 policy that defines the algorithms/methods to be used for hashing, authentication, DH group, lifetime, and encryption. Please note that these policies should match on both sides. If you already have a policy then you don't need to create them. You can check whether there are any policies by running show run crypto ikev1 command.

crypto ikev1 policy 5
 authentication pre-share
 encryption aes-256
 hash sha
 group 5
 lifetime 3600

3. Create a tunnel-group and configure the peer IP address alongside the tunnel pre-shared key (PSK). Please note that the PSKs should match on both sides.

tunnel-group 201.85.10.1 type ipsec-l2l
tunnel-group 201.85.10.1 ipsec-attributes
 ikev1 pre-shared-key Cisco123

4. Configure the Transform Set which is a combination of security protocols and algorithms that define the way the VPN peers protect data.

crypto ipsec ikev1 transform-set AES-HMAC esp-aes-256 esp-sha-hmac

5. Configure a Crypto Map and apply it to the outside interface. A crypto map defines an IPSec policy that includes an ACL to identify the interesting traffic, peer IP and IKEv1 transform-set that we created in the previous step. If there is already a crypto map applied on the ASA, you only need to add a new entry with the same crypto map name and increment the number instead of creating a new crypto map.

access-list BRANCH-TO-HO extended permit tcp object user-subnet object ho-server-subnet

crypto map VPN-MAP 1 match address BRANCH-TO-HO
crypto map VPN-MAP 1 set peer 201.85.10.1
crypto map VPN-MAP 1 set ikev1 transform-set AES-HMAC
crypto map VPN-MAP 1 set security-association lifetime seconds 3600

crypto map VPN-MAP interface OUTSIDE
💡
You can optionally enable Perfect Forward Secrecy (PFS) which is a cryptographic technique where the newly generated keys are not related to any of the previously generated keys. When you enable PFS, ASA always generates a new set of keys which is used during the IPSec Phase 2 negotiations.

6. The most crucial part is NAT exemption. As we discussed before, any traffic that is initiated from the user subnet going out to the Internet is NATed to the outside interface's public IP. However, we want the traffic from the branch office to the headquarters to be exempted from the dynamic PAT. So, we need to tell the ASA that if the traffic is initiated from 10.10.60.0/24 and is going out to 192.168.10.0/24, the IP address shouldn't be NAted. The following command just does that.

nat (USERS,OUTSIDE) source static user-subnet user-subnet destination static ho-server-subnet ho-server-subnet

Headquarters Configuration

We just need to mirror the configuration in terms of the IP addresses. Phase-1 and Phase-2 policies should be identical.

crypto ikev1 enable OUTSIDE

crypto ikev1 policy 5
 authentication pre-share
 encryption aes-256
 hash sha
 group 5
 lifetime 3600

tunnel-group 101.85.10.1 type ipsec-l2l
tunnel-group 101.85.10.1 ipsec-attributes
 ikev1 pre-shared-key Cisco123

crypto ipsec ikev1 transform-set AES-HMAC esp-aes-256 esp-sha-hmac

access-list HO-TO-BRANCH extended permit tcp object ho-server-subnet object branch-user-subnet

crypto map HQ-MAP 10 match address HO-TO-BRANCH
crypto map HQ-MAP 10 set peer 101.85.10.1
crypto map HQ-MAP 10 set ikev1 transform-set AES-HMAC
crypto map HQ-MAP 10 set security-association lifetime seconds 3600
crypto map HQ-MAP interface OUTSIDE

nat (SERVERS,OUTSIDE) source static ho-server-subnet ho-server-subnet destination static branch-user-subnet branch-user-subnet
💡
The name of the transform set or the crypto map name doesn't need to match. Only the protocols and methods within them should match.

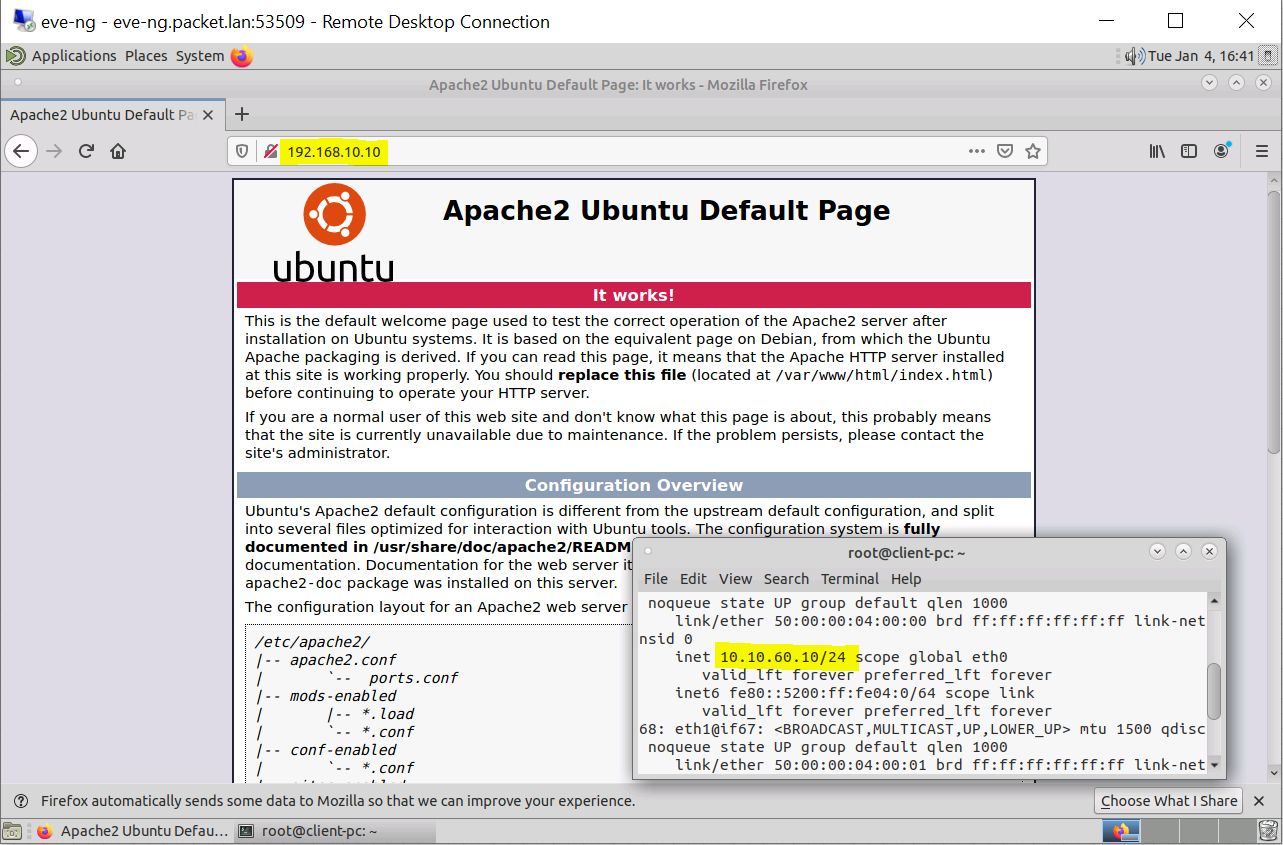

That's all, let's see if the client-pc can access the webserver.

Yes, the client-pc can. There are a few ASA commands that you can use to verify the tunnel status.

Use show crypto isakmp sa to verify the currently active phase - 1 tunnels. As you can see below, branch office ASA initiated the tunnel. Role: initiator using IKEv1.

branch-01# show isa sa

IKEv1 SAs:

   Active SA: 1
    Rekey SA: 0 (A tunnel will report 1 Active and 1 Rekey SA during rekey)
Total IKE SA: 1

1   IKE Peer: 201.85.10.1
    Type    : L2L             Role    : initiator
    Rekey   : no              State   : MM_ACTIVE

There are no IKEv2 SAs

To check the status of the phase - 2 IPSec tunnels, you can use show crypto ipsec sa command. #pkts encrypt and #pkts decrypt are a very good indicator if you run into any issues. If you see the 'number of packets' encrypted increasing but the 'number of packets' decrypted stays the same then the issue is with receiving the packets, more likely an issue on the other side. If you see the 'number of packets encrypted' stays the same then our side of the ASA is not sending any traffic through the tunnel.

branch-01# show crypto ipsec sa
interface: OUTSIDE
    Crypto map tag: VPN-MAP, seq num: 1, local addr: 101.85.10.1

      access-list BRANCH-TO-HO extended permit tcp 10.10.60.0 255.255.255.0 192.168.10.0 255.255.255.0
      local ident (addr/mask/prot/port): (10.10.60.0/255.255.255.0/6/0)
      remote ident (addr/mask/prot/port): (192.168.10.0/255.255.255.0/6/0)
      current_peer: 201.85.10.1


      #pkts encaps: 31, #pkts encrypt: 31, #pkts digest: 31
      #pkts decaps: 22, #pkts decrypt: 22, #pkts verify: 22
      #pkts compressed: 0, #pkts decompressed: 0
      #pkts not compressed: 31, #pkts comp failed: 0, #pkts decomp failed: 0
      #pre-frag successes: 0, #pre-frag failures: 0, #fragments created: 0
      #PMTUs sent: 0, #PMTUs rcvd: 0, #decapsulated frgs needing reassembly: 0
      #TFC rcvd: 0, #TFC sent: 0
      #Valid ICMP Errors rcvd: 0, #Invalid ICMP Errors rcvd: 0
      #send errors: 0, #recv errors: 0

      local crypto endpt.: 101.85.10.1/0, remote crypto endpt.: 201.85.10.1/0
      path mtu 1500, ipsec overhead 74(44), media mtu 1500
      PMTU time remaining (sec): 0, DF policy: copy-df
      ICMP error validation: disabled, TFC packets: disabled
      current outbound spi: 7FB999E3
      current inbound spi : D9F696BC

ASA VPN configurations IKEv2

I'm going to remove all the IKEv1 related configurations and then re-configure the VPN using IKEv2. The configuration is almost identical to IKEv1.

Branch Office

crypto ikev2 enable OUTSIDE

crypto ikev2 policy 20
 encryption aes-256
 integrity sha256
 group 14
 prf sha
 lifetime seconds 3600

 tunnel-group 201.85.10.1 type ipsec-l2l
 tunnel-group 201.85.10.1 ipsec-attributes
  ikev2 remote-authentication pre-shared-key Cisco123
  ikev2 local-authentication pre-shared-key Cisco123

 crypto ipsec ikev2 ipsec-proposal VPN-EXAMPLE
  protocol esp encryption aes-256
  protocol esp integrity sha-256

crypto map VPN-MAP 1 match address BRANCH-TO-HO
crypto map VPN-MAP 1 set peer 201.85.10.1
crypto map VPN-MAP 1 set ikev2 ipsec-proposal VPN-EXAMPLE
crypto map VPN-MAP 1 set security-association lifetime seconds 3600
crypto map VPN-MAP interface OUTSIDE


Head Office

crypto ikev2 enable OUTSIDE

crypto ikev2 policy 20
 encryption aes-256
 integrity sha256
 group 14
 prf sha
 lifetime seconds 3600

 tunnel-group 101.85.10.1 type ipsec-l2l
 tunnel-group 101.85.10.1 ipsec-attributes
  ikev2 remote-authentication pre-shared-key Cisco123
  ikev2 local-authentication pre-shared-key Cisco123

 crypto ipsec ikev2 ipsec-proposal VPN-EXAMPLE
  protocol esp encryption aes-256
  protocol esp integrity sha-256

crypto map VPN-MAP 1 match address HO-TO-BRANCH
crypto map VPN-MAP 1 set peer 101.85.10.1
crypto map VPN-MAP 1 set ikev2 ipsec-proposal VPN-EXAMPLE
crypto map VPN-MAP 1 set security-association lifetime seconds 3600
crypto map VPN-MAP interface OUTSIDE

Verification using show crypto isakmp sa command.

branch-01# show crypto isakmp sa

There are no IKEv1 SAs

IKEv2 SAs:

Session-id:2, Status:UP-ACTIVE, IKE count:1, CHILD count:1

Tunnel-id Local                                               Remote                                                  Status         Role
  6440241 101.85.10.1/500                                     201.85.10.1/500                                          READY    INITIATOR
      Encr: AES-CBC, keysize: 256, Hash: SHA256, DH Grp:14, Auth sign: PSK, Auth verify: PSK
      Life/Active Time: 3600/97 sec
Child sa: local selector  10.10.60.0/0 - 10.10.60.255/65535
          remote selector 192.168.10.0/0 - 192.168.10.255/65535
          ESP spi in/out: 0x35d1507/0xe46501d5

IKEv2 has many new features that make it more reliable and secure but there are many companies that still use IKEv1. One of the benefits of IKEv2 is that it exchanges fewer messages to establish a tunnel compare to IKEv1. IKEv2 uses four messages whereas IKEv1 uses either nine messages (in the main mode) or six messages (in aggressive mode).

Please let me know in the comment section which one did you end up using. As always your comments and feedback are always welcome. If you want to learn about ASA VPN filters, please check out my post here.

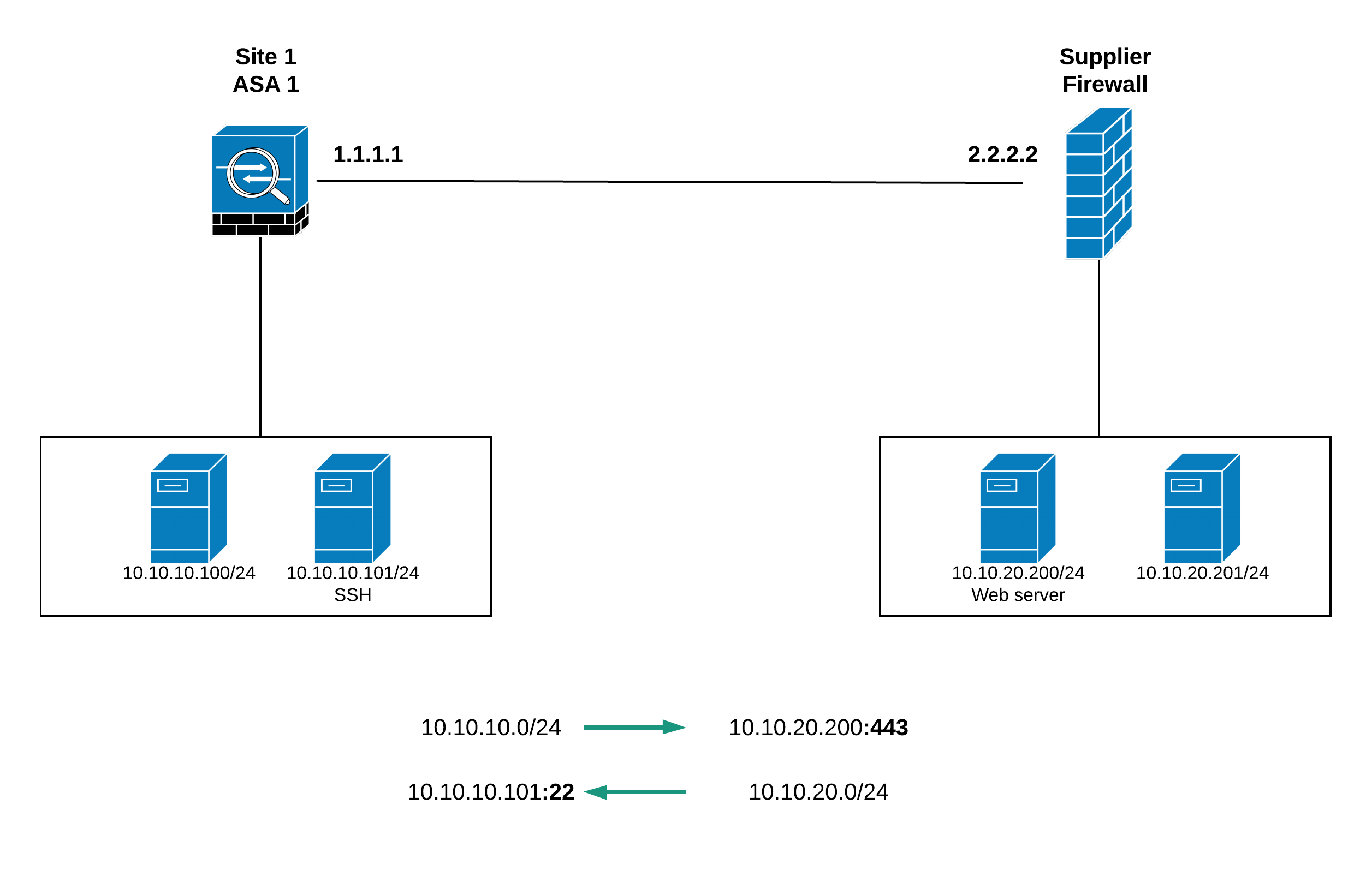

Cisco ASA vpn-filter
